LGA1156 Intel® Lynnfield/Clarkdale Processor Ready

This motherboard supports the latest Intel® Lynnfield and Clarkdale processors in LGA1156 package, which has memory and PCI Express controller integrated to support 2-channel (4 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes providing great graphics performance. Intel® Lynnfield and Clarkdale processors are the most powerful and energy efficient CPUs in the world. Moreover, Intel® Clarkdale integrated Graphics Processing Unit (GPU) processors which goes with Intel® H55 chipset with VGA out can bring you to the whole new experience of the next generation VGA performance. It also provides separated 3D, 2D and Video Engines to execute different graphic control in hardware.

Intel H55

The Intel® H55 Express Chipset is the latest one-chipset design to support latest 1156 socket Intel® Core™ i7/ Core™ i5/Core™ i3/ Pentium® Processors. Intel® H55 chipset provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Using Intel Core™ i5 6 Series, Core™ i3 5 Series and Pentium® CPU with H55 Express Chipset to enjoy the latest Intel integrated graphic performance!

GPU Boost

Instant iGPU Level Up! GPU Boost overclocks the integrated GPU in real time for the best graphics performance. User-friendly UI facilitates flexible frequency and voltage adjustments. Its ability to deliver multiple overclocking profiles also provides rapid and stable system-level upgrades.

ASUS 4+2 Phase Power Design

Longer Life & Higher Efficiency! Unleashes ultimate memory performances with independent power to core components, while providing fast transient response and stability for the CPU under heavy loading or overclocking modes.

ASUS Fanless Design - Heatsink solution

The crystal-shaped heatsink features 0-dB thermal solution that offers users a noiseless PC environment. Not only the beautiful shape upgrades the visual enjoyment for motherboard users, but also the heatsink design lowers the temperature of the chipset and power phase area through high efficient heat-exchange. Combined with usability and aesthetics, the ASUS crystal-shaped heatsink will give users an extremely silent and cooling experience with the elegant appearance!

CPU	Intel® Socket 1156 Core™ i7 Processor/Core™ i5 Processor/Core™ i3 Processor/ Pentium® Processors Supports Intel® Turbo Boost Technology* * The Intel Turbo Boost Technology support depends on the CPU types. ** Refer to www.asus.com for Intel CPU support list
Chipset	Intel® H55 Express Chipset
Memory	4 x DIMM, Max. 16 GB, DDR3 2200(O.C.)*/2133/1866/1800/1600/1333/1066 Non-ECC,Un-buffered Memory Dual Channel memory architecture Supports Intel® Extreme Memory Profile (XMP)
Expansion Slots	1 x PCIe 2.0 x16 2 x PCIe 2.0 x1 (2.5GT/s, gray slots) 1 x PCI
VGA	Multi-VGA output support: HDMI and RGB ports Supports HDMI with max. resolution 1920x 1200 @ 60Hz Supports RGB with max. resolution 2048x 1536 @ 75 Hz Maximum shared memory of 1748 MB
Storage	Intel® H55 Express Chipset built-in 6 xSATA 3.0 Gb/s ports VIA VT6415 PATA controller 1 xUltraDMA 133/100 for up to 2 PATA devices
Lan	Gigabit LAN controller Realtek® 8111E Gigabit LAN controller featuring AI NET2
Audio	Realtek® ALC887 8-Channel High Definition Audio CODEC - Support Jack-dectection, Multi-streaming,Front Panel Jack-Retasking (Only in Mic in port) - Optical S/PDIF out ports at board & back I/O
USB	12 USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at back panel)
ASUS Unique Features	ASUS Exclusive Overclocking Features - GPU Boost - TurboV - Turbo Key ASUS Power Solutions - ASUS EPU ASUS Express Gate ASUS Quiet Thermal Solution - ASUS Fanless Design: Heat-sink solution ASUS EZ DIY - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2
Back Panel I/O Ports	1 x PS/2 Keyboard/Mouse Combo port 1 x D-Sub 1 x HDMI 1 x S/PDIF Out (Optical) 1 x LAN(RJ45) port 6 x USB 2.0/1.1 3 x Jack (8-channel) Audio I/O

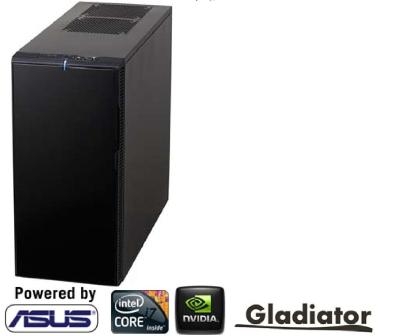

Processor:	Intel i-7 Quad 2.9Ghz
Memory:	12GB DDR3 RAM
Storage:	1GB HDD
Graphics Card:	1GB Dedicated nVidia GeForce GT220
Operating System:	Excludes Software
Screen:	Excludes LCD Display
Built-In Devices:	Asus Motherboard
Optical Drive:	DVD Burner
Warranty:	1 Year Onsite Pick Up & Return Warranty (Upgrade to 3 Years Parts & Labour Australia Wide On-Site Pick Up & Return Warranty for $189 - This option can be selected from our recommended add-ons that are displayed on the right hand side)
	Quiet PC - Noise Reduction Case
