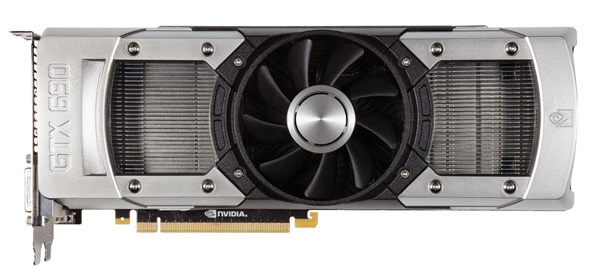

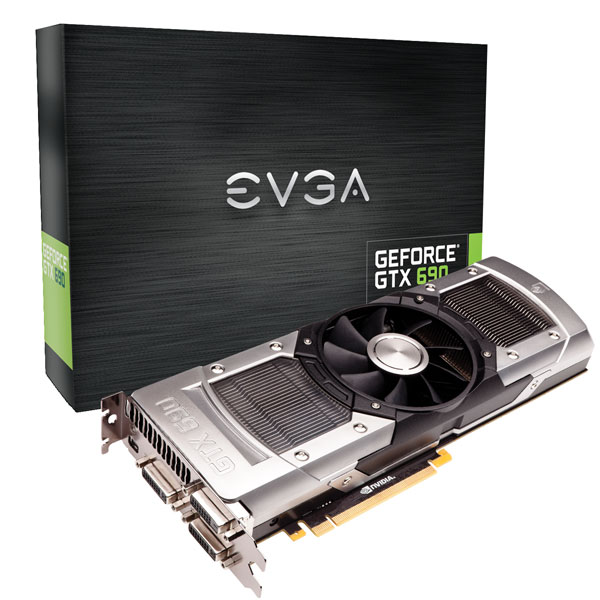

EVGA GeForce GTX 690 4GB
The EVGA GeForce GTX 690 is NVIDIA's fastest graphics card... ever. It combines the groundbreaking new GeForce architecture with raw dual-GPU power to provide truly game-changing performance. Get superior gaming innovation that is meticulously designed - inside and out - for the fastest, smoothest, richest gaming experience.
Performance
NVIDIA GTX 690
3072 CUDA Cores
915 MHz GPU
1019MHz Boost Clock
Memory
4096 MB, 512 bit GDDR5
6008 MHz (effective)
384.52 GB/s Memory Bandwidth
Interface
PCI-E 3.0 16x

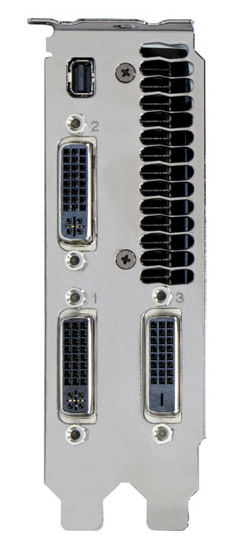

DVI-I, DVI-I, DVI-D, Mini Display-Port
SLI Capable
Resolution & Refresh
240Hz Max Refresh Rate
2048x1536 Max Analog
2560x1600 Max Digital
Product Warranty
This product comes with a 3 year limited warranty. Registration is recommended
EVGA offers several warranty solutions for our customers to choose from. Please refer to the suffix of the part number and our warranty terms for details.
Operating System Support
Windows 7 32/64bit, Windows Vista 32/64bit, Windows XP 32/64bit
Requirements
Minimum of a 650 Watt power supply.
(Minimum recommended power supply with +12 Volt current rating of 38 Amps.)
Two available 8-pin PCI-E power dongles
Specifications
| Features: | Key Features: NVIDIA PhysX technology Full support for NVIDIA PhysX technology, enabling a totally new class of physical gaming interaction for a more dynamic and realistic experience with GeForce. |
| NVIDIA SLI Ready. Industry leading NVIDIA SLI technology offers amazing performance scaling by implementing AFR (Alternate-Frame-Rendering) for the world's premier gaming solution under Windows 7 with solid, state-of-the-art-drivers. | |
| NVIDIA SMX Engine Next generation streaming multiprocessor built from the ground up for incredible performance and power efficiency. | |
| NVIDIA GPU Boost Dynamically maximizes clock speeds based on workload of the game to push performacne to new levels and bring out the best in every game. | |
| NVIDIA Adaptive Vertical Sync, NVIDIA Surround, Supports four concurrent displays, Microsoft DirectX 11 with Direct Compute 5.0 support, NVIDIA 3D Vision Ready, NVIDIA CUDA Technology | |
| PCI Express 3.0 Support OpenGL 4.2 Support OpenCL Support NVIDIA FXAA Technology NVIDIA TXAA Technology NVIDIA PureVideo HD Technology |
